Scalable Vector Graphics

pdf

Vector Graphics

• Contrary to raster/bitmap images (pixel description)
• Graphics are described using mathematical/geometrical primitives
  • 2D objects: lines, curves, circles, rectangles, text
  • or 3D equivalent: meshes, nurbs, spheres, …
• Better suited for simple geometrical shapes, not for natural images, and when the scene is not complex
• Formats: SVG, VML, AI, PS, PDF, Flash…
• Properties:
  • Can be scaled without pixel artifacts
  • Trade-off image quality vs. rendering cost (Client-side rendering vs. server-side rendering)

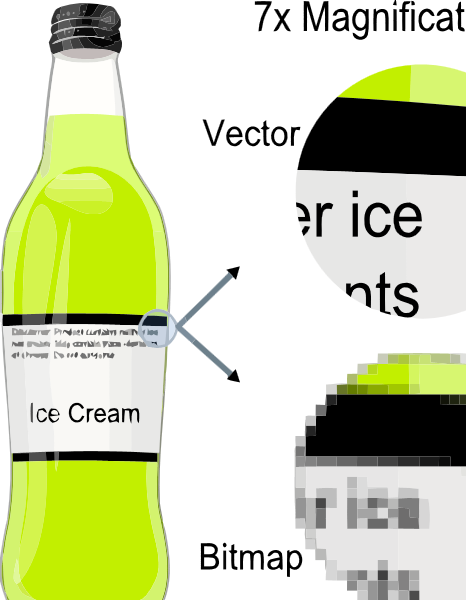

Vector Graphics Properties: Zoomability

Source:wikipedia.org

Vector Graphics Properties: Scalability

				Total
PNG	25x37 / 1,55 Ko	50x75 / 3,89 Ko	100x150 / 9,89 Ko	15,33 Ko
SVG	-	any resolution	-	5,93 Ko
SVGZ	-	any resolution	-	1,54 Ko

SVG: a bit of history

• Initial ecosystem:
  • HTML 4.01: 1999
  • CSS 1.0 (2nd ed.): 1996
  • XML 1.0 (2nd ed.): 1998
• Initial competing technologies: VML (Microsoft) and PGML (Adobe)
  • SVG 1.0 (2001)
  • SVG 1.1 (2011)
• New ecosystem: tight integration with
  • HTML 5
  • CSS 3
  • SVG 2 (2016, Candidate Recommendation)

What is SVG ?

• XML standard for
  • 2D Vector Graphics
    • Including text & fonts
    • With specific drawing, layout, positioning rules
  • With support for:
    • Styling (using CSS),
    • Animations (using JavaScript or SMIL),
    • Scripting (using JavaScript)
    • Interactivity (using JavaScript & DOM Events),
    • Raster images (PNG, JPG)
    • Multimedia (audio, video)
• Examples
  • SVG WoW
  • Snap
  • SVG animations

SVG: Benefits/Drawbacks from XML

• Benefit: SVG documents can be handled by generic XML tools
  • Syntax verification, validation
  • Modification using JS/DOM
  • Transformations using XSLT
  • …
• Drawback: Verbose
  • Some attributes are hard to read, such as d of path
  • XML requires difficult syntax (simplifications in SVG 2)

SVG Basic Example

<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 500 600" version="1.1">
 <rect x="100" y="100" width="400" height="200"
          fill="yellow" stroke="black" stroke-width="3"/>
 <rect x="100" y="350" rx="100" ry="50" width="400" height="200"
          fill="salmon" stroke="black" stroke-width="3"/>
 <circle cx="100" cy="100" r="80"
          fill="orange" stroke="navy" stroke-width="10"/>
</svg>

SVG Example with group

<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 500 600" version="1.1">
 <rect x="100" y="100" width="400" height="200"
          fill="yellow" stroke="black" stroke-width="3"/>
 <g>
  <rect x="100" y="350" rx="100" ry="50" width="400" height="200"
          fill="salmon" stroke="black" stroke-width="3"/>
  <circle cx="100" cy="100" r="80" fill="orange" stroke="navy" stroke-width="10"/>
 </g>
</svg>

SVG Files

• Internet Media Type (a.k.a. MIME Type)
  • image/svg+xml
• File Extensions:
  • .svg
  • .svgz when compressed using GZIP

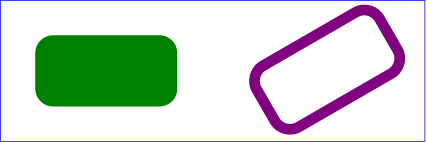

Basic shapes

Graphical Primitives

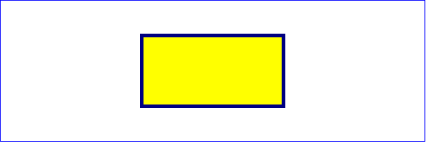

<rect>

• Anchored on its top left corner (x, y)
• Possible rounded corners (rx, ry)

<circle>

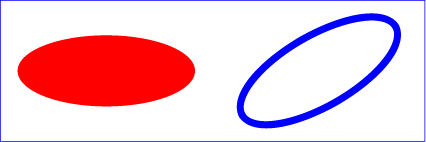

<ellipse>

• Anchored on its center

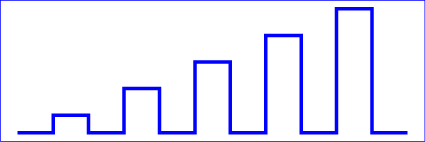

Basic shapes 2

Point/Coordinate-based primitives

• <line>, <polygon>, <polyline>
• <path> : complex curves

SVG Curves

Line segments

Bézier Curves

• Cubic (C)
• Cubic Symetrical (S)
• Quadratic (Q)
• Quadratic Symetrical (T)

Catmull-Rom Curves (in SVG 2)

• Dotty.svg

…

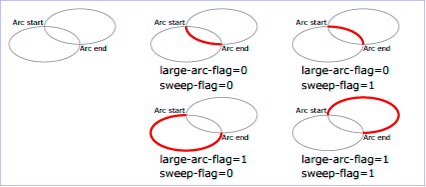

SVG Arcs

• Start-point, end-point + arc parameter

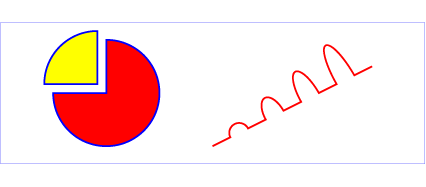

SVG Path

Element used to describe complex graphics

<path>

Drawing commands are described using the d attribute

• List of 2D points separated by drawing commands
• Use of relative or absolute user units

Text in SVG

• SVG uses specific elements for text
  • Different from HTML
    • No flowing text
    • No paragraph
  • Graphical primitives as others, can be filled, stroked, …
  • With additional CSS text properties: font-size, …
• SVG Text elements
  • <text> renders characters on a single line
  • <tspan> used to change the style of some characters on a line
  • <textPath> draws a text along a path (ex: legend on a river)

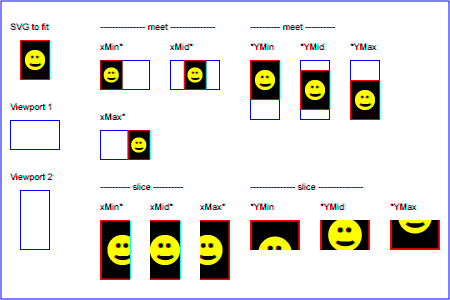

Viewing SVG graphics: Vocabulary

• SVG canvas
  • Infinite rendering area onto which the graphical elements are rendered
• SVG viewbox
  • Rectangular region clipping the canvas defined by the viewbox attribute(x y width height)
• SVG window / viewport
  • The viewbox is viewed fitted or sliced to a size width x height
  • Defined by the width, height and preserveAspectRatio attributes
    • Treated as if the viewbox was an image (also used for images)

Positioning SVG: Coordinate Systems

• SVG Canvas Coordinate System
  • X-axis right-wards, Y-axis downward
  • Origin usually corresponding to the top-left corner of the viewbox
• Local Coordinate Systems
  • Origin: typically top-left or center of a shape
• Intermediate Coordinate Systems
  • Transformation of a local coordinate system
  • using <g> elements
• Units for positioning and transformations
  • Default arbitrary unit
    • Mapped to physical units based on viewBox
    • Possible to use units from CSS: cm, px, em, …
  • No precision limit

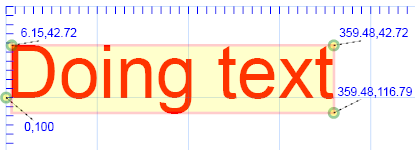

Example of Local Coordinate Systems

• Graphics

<path stroke="black" d="M 100 100 L 200 200"/>

• Text

<text x="0" y="100" font-size="80" fill="red">Doing text</text>

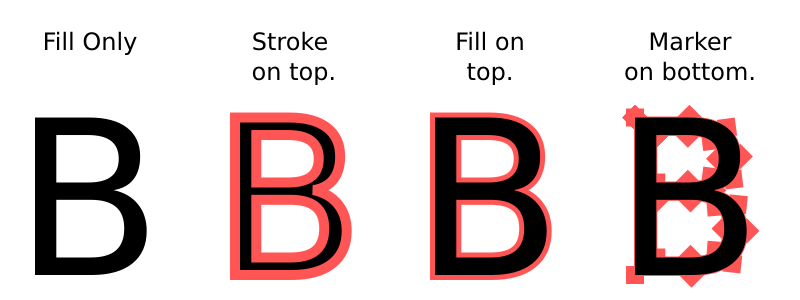

SVG Rendering Model

• Individual graphical element rendering
  • Drawing operations in order
    • Fill then stroke (or stroke then fill), using the paint-order attribute
    • Then markers
    • Then filters
    • Then clip
    • Then mask
• Then group rendering (a.k.a. compositing, blending, …)

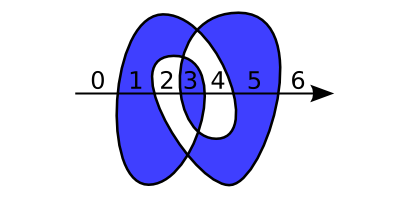

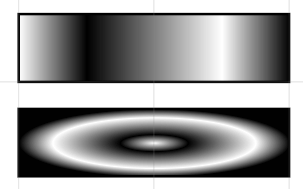

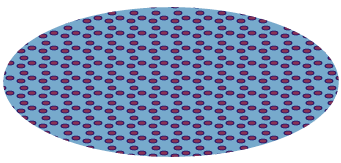

Filling Properties

Stroking Properties

Authoring tools

• Your favorite text editor!
• Commercial tools
  • Adobe: Illustrator, EdgeCode,
    Edge Animate, Dreamweaver
  • Microsoft: Visio
  • CorelDraw
• Open Source Software
  • Inkscape (GUI editor,
    Free, Open Source)
  • SVG Edit (editor in the browser)
• SVG Cleaners
  • Inkscape: Save as « Plain » or « Optimized » SVG
  • Scripts for cleaning: scour, …

Summary of the lesson

• What is vector graphics, history of SVG, pros and cons
• Elements, coordinates, rendering
• Authoring tools
