HyperText Markup Language

pdf

HTML: A bit of history

Initial version created by Tim Berners-Lee in 1989
- as an open language, royalty-free
- Then developed by the World Wide Web Consortium (W3C)
- Now developed by W3C and WHATWG
Several versions
- HTML 4 Strict, Transitional, Frameset
- HTML vs. XHTML
- HTML 5 (HTML.next, HTML 5.1)

HTML 5: The language

1 language, 2 syntaxes
- HTML, identified by documents of type text/html
- XHTML (XML), identified by application/xhtml+xml
- Similar syntaxes but different processing (e.g. +/- strict)
Text-based
- mix of tags (markup) and text
- no compilation step
- can easily view the source code
Presentation agnostic
- Might be rendered by different renderers (screen, printer, text-only, speech, …)
- Rendering can be configured via CSS
Basic Interactivity (navigation, forms)
- Advanced Interactivity to be provided by JS
Associated with a tree representation and JS APIs: DOM

HTML 5: by example

Go into https://jsfiddle.net/:

experiment with tags html, head, body, h1, p, hr, br, a, div, span, table, img…
experiment with attributes src, href, width, style…
experiment with CSS

HTML 5: Tags

start (opening) tag :

<mytag>

end (closing) tag:

</mytag>

Tags should be closed
- in XML-compatible syntax: always
  - in particular with self-closing tags:
```
<mytag/>
```
- in non-XML syntax: most of the time
  - except for some tags (historical reasons): img, br, input, …
- must be closed in the right order
```
<a><b></a></b> // wrong
<a><b></b></a> // correct
```
Tags structure the content of an HTML document into a tree: the DOM Tree

HTML 5: Attribute

An attribute indicates a property of a DOM element

specified on the corresponding start tag or self-closing tag

<mytag property-name='property-value'></mytag>
<mytag property-name='property-value'/>

Using quotes " or single-quotes ’

<mytag name="value"></mytag>
<mytag name='value'/>

Possibly with nested quotes

<mytag name="value with 'inside'">
<mytag name='value with "inside"'>

Aternate HTML 5 syntaxes (not XML-compatible)

HTML 5: Attributes

Multiple attributes can be specified:

space separated

    <mytag attr1="value1" attr2="value2">

order is not important

    <mytag attr2="value2" attr1="value1">

cannot duplicate the same attribute twice

    <mytag attr1="value2" attr1="value1">

HTML 5: A large standard

Defines many tags

Paragraphs, Tables, Forms
Multimedia: images, videos, audios
Graphical Primitives
…

Defines JavaScript APIs

Basic document manipulations
Element-specific APIs (e.g. video)
Advanced APIs (Offline Storage, Database, communications)
…

Defines how to integrate with other Web technologies

Mix of SVG and MathML within the HTML page

HTML 5: Demos

HTML 5: Tags and Content Model

Tags are organized in different categories

Root & Metadata: html, head, title, meta, link, base, style
Scripting: noscript, script, template
Sections: body, section, nav, article, h1…h6, header, footer, address, main
Grouping: div, p, hr, pre, blockquote, ol, ul, li, dl, dt, dd,figure, figcaption
Text: a, em, strong, small, s, cite, q, dfn, abbr, data, time, code, var, samp, kbd, sub, sup, i, b, u, mark, ruby, rt, rp, bdi, bdo, br, wbr
Media elements: img, video, audio, source, track, canvas, svg
Embedded content: iframe, embed, object, param, map, area, math
Forms: form, fieldset, label, legend, input, button, select, datalist, optgroup, option, textarea, keygen, output, progress, meter
Tables: table, caption, tr, td, th, colgroup, col, tbody, thead, tfoot
Interactive: details, summary, menuitem, menu

Tags can only be nested according to the content model

Exemple: td (table cell) can only be in tr (table row)

HTML 5 Hello World!

As simple as that!

Hello World!

Browser’s parsing algorithm are very robust (tag soup)

Will create the page structure for you!
Will try to close tags for you!
…

HTML 5 Basic page structure

<!DOCTYPE html>
<html lang="en">
<head>
<title>This is the title</title>
</head>
<!-- this is a comment -->
<body>
<!-- visible content goes here -->
</body>
</html>

HTML 5 header

The header of a document is delimited by the head tags.

<head> ... </head>

The header contains meta-informations about the document, such as its title, encoding, associated files, etc.
Some common items are:
- metadata
  - The character set of the page, usually at the very beginning of the header (not reliable)
```
<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
<meta charset="UTF-8">
```
- The title of the page, displayed in the title bar of Web browsers.
```
<title>My great website</title>
```
- Javascript & CSS links

HTML 5 body

The content of the document is delimited by the body tags.

<body> ... </body>

The body may be structured into sections, paragraphs, lists, etc.

HTML 5 body content

Typically uses tags describe sections, by decreasing order of importance:

<h1>Title of the page</h1>
<h2>Title of a main section</h2>
<h3>Title of a subsection</h3>
<h4>Title of a subsubsection</h4>

Or paragraphs of text:

<p> ... </p>

Or simple grouping elements without semantics:

<div> ... </div>

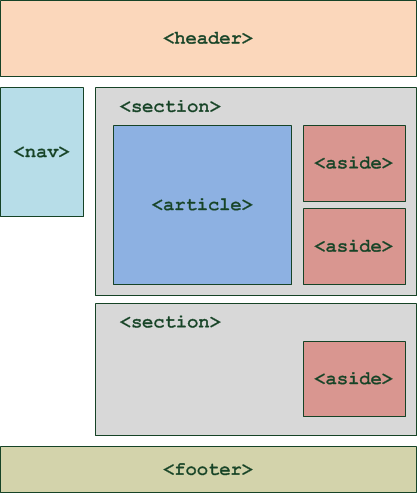

Structured body of a page

Links

What differentiates Web pages (hypertext pages) from normal documents: links!
Introduced with <a> ... </a>
Navigating a link can bring to:
- a resource on another server or another file of the same server

<a href="http://www.cnrs.fr/">
  <img src="images/cnrs.gif" alt="CNRS">
</a>
<a href="bio/indexbioinfo.html">Bioinformatics</a>

another part of the same document with anchors

Relative URLs

with respect to a context (e.g., the URL of the parent document, the base URL):
If context is : https://www.example.com/toto/toto2/toto3

relative URL	Absolute URL
/titi	https://www.example.com/titi
tata	https://www.example.com/toto/toto2/tata
#tutu	https://www.example.com/toto/toto2/toto3#tutu

Anchors

Anchors serve to reach a precise point in the document.
They are defined, either on an existing tag by using the id attribute, or with an

<a name="tutorials">

Then, one can link to this anchor:

<a href="#tutorials">tutorials</a>
<a href="http://www.w3.org/#tutorials">tutorials</a>

Lists

Unordered lists

<ul>
<li>First bullet point</li>
<li>Second bullet point</li>
</ul>

First bullet point
Second bullet point

Ordered lists

<ol>
<li>First ordered point</li>
<li>Second ordered point</li>
</ol>

First ordered point
Second ordered point

Tables


<table>
 <tr>
  <td>row 1 - column 1</td>
  <td>row 1 - column 2</td>
 </tr>
 <tr>
  <td>row 2 - column 1</td>
  <td>row 2 - column 2</td>
 </tr>
</table>

row 1 - column 1	row 1 - column 2
row 2 - column 1	row 2 - column 2

Other options: th, caption, thead, tbody, tfoot, col, colgroup

Forms

<form  action="demo_form_action.asp" method="get">
 <fieldset>
  <legend>Information</legend>
  First name: <input type="text"
   name="firstname"><br>
  Last name: <input type="text"
   name="lastname"><br>
 </fieldset>
 Password: <input type="password"
  name="pwd"><br>
 <input type="radio" name="sex"
  value="male">Male<br>
 <input type="radio" name="sex"
  value="female">Female<br>
 <input type="checkbox" name="vehicle"
  value="Bike">I have a bike<br>
 <input type="checkbox" name="vehicle"
  value="Car">I have a car<br>
 Date: <input type="date"
  name="date"><br>
 Nationality: <select name="nationality">
  <option value="french">French</option>
  <option value="English">English</option>
 </select>
 <input type="submit" value="Send">
</form>

Other options: colors, time, …

Nested documents

Render the content of another page in the current page
Using <iframe> tags

<iframe width="400" height="215" frameborder="0
           scrolling="yes" marginheight="0" marginwidth="0"
           src="http://www.telecom-paris.fr/...">
</iframe>

Document Object Model

Tree-based representation of an HTML document

DOM Node=

DOM Text node
DOM Comment node
DOM Element
DOM Attribute

DOM Nodes, DOM Elements … can be manipulated by script via specific interfaces

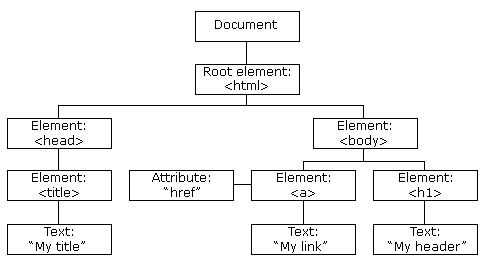

DOM Tree example

<html>
 <head>
  <title>My title</title>
 </head>
 <body>
  <a href="http://www.enst.fr/">My link</a>
  <h1>my header</h1>
 </body>
</html>

Simplified tree: be careful of DOM Text nodes

Summary of this lesson

HTML history, HTML5, tags, attributes, JS APIs
demo, basic structure, basic elements
DOM = JS API to HTML
